The Foundation of Music

Bass is the foundation of music. It is the element that makes you feel the rhythm, the groove, and the emotion of a song. Bass can make your heart beat faster, your body move, and your mood change. Whether you listen to rock, pop, hip hop, jazz, or classical music, clean and extended bass adds a new dimension to musical enjoyment and that's why we've developed RS1.

Controlled Delivery

The enjoyment of music is at the core of our designs. RS1 is not about thunderous, overblown bass, but about deep, controlled, and most importantly a musical sound. To achieve this, the enclosure and custom drivers have been optimised and tuned to deliver natural extended bass, that is fast and rhythmic.

Driving the system is a powerful 100-watt Class D amplifier. This new generation amplifier keeps firm control of the bass driver at all volume levels with headroom to spare, although soft clipping is built in should the system ever be overloaded to avoid damage. Setup and adjustment is straightforward and with auto-on/standby, RS1 will automatically turn itself on and off as required.

Developed Through Demand

Our reason for the development of RS1, was due to the demand from customers requesting a companion sub for our award winning MR1 Bluetooth speakers. We also saw that there was a need for a subwoofer with style. Where many subs look unattractive in a domestic environment, the tailored grille and hand-crafted wood panels of RS1 means it fits seamlessly with other furnishings, making it a product that customers will be proud to display in their homes.

Enhancing Your Experience

RS1 delivers deep bass that smaller speakers are unable to, giving a more satisfying and realistic audio experience. It's a perfect addition to our MR1 model or indeed any other system where a subwoofer with style and good sound is required, providing the joy of bass in every note and song.

Technical Specifications

Frequency Response:
35Hz - 180Hz (typical in-room)

Speaker Units:
165mm/6.5" Ruark long-throw subwoofer
165mm/6.5" Ruark passive radiator

Amplifier:
100W nominal Class D

Cabinet Type:
Tuned passive radiator

Cabinet Volume:
9.5 litres

Tuning Frequency:
45Hz

Connectivity:
Mono RCA input (max 2.3 Vrms)

Dimensions (Cabinet):
H270 × W250 × D250mm

Dimensions (Max):
H300 × W250 × D285mm

Product Weight:
6.7kg

Power Input:
90-240VAC 50-60Hz 2.5A

Power Consumption:
0.5W standby / 7W typical

Key Features

Auto standby and wake-up
180 degree phase switch
Adjustable crossover (50-180Hz)
Adjustable level control
Soft clip protection filter

In the Box

RS1 Subwoofer
2m AC power cable (IEC C7 figure of 8)
3m RCA subwoofer cable
Quick Start Guide

Available Finishes

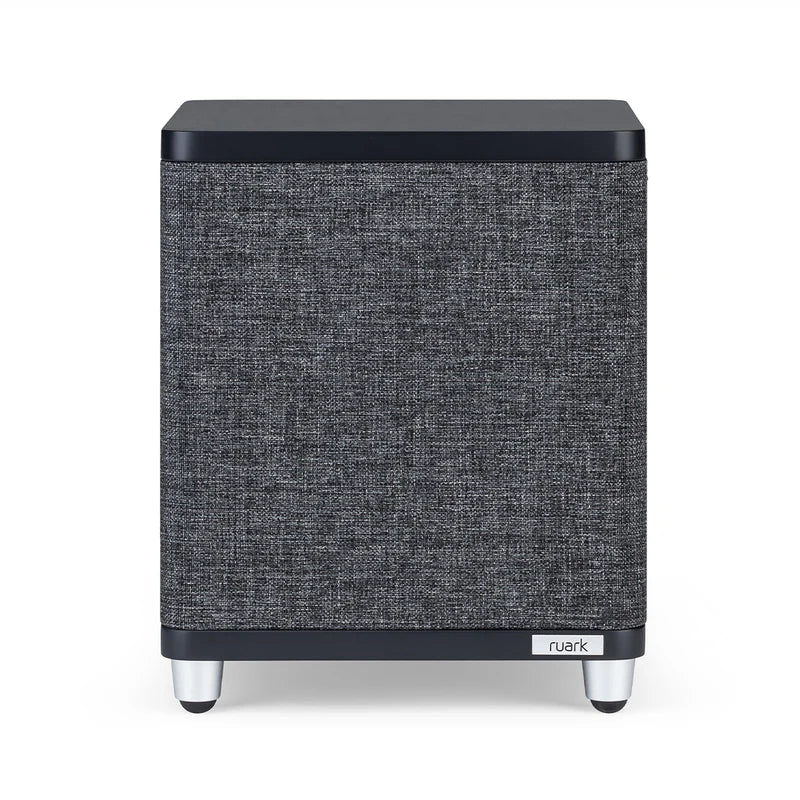

Charcoal Lacquer panels with Dark Slate fabric grille

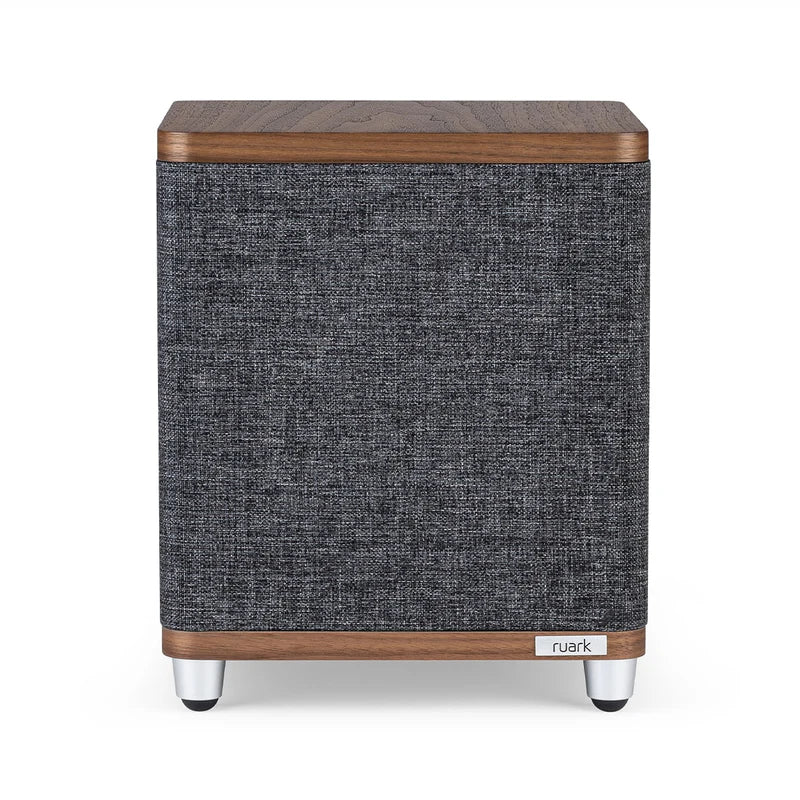

Rich Walnut panels with Dark Slate fabric grille
